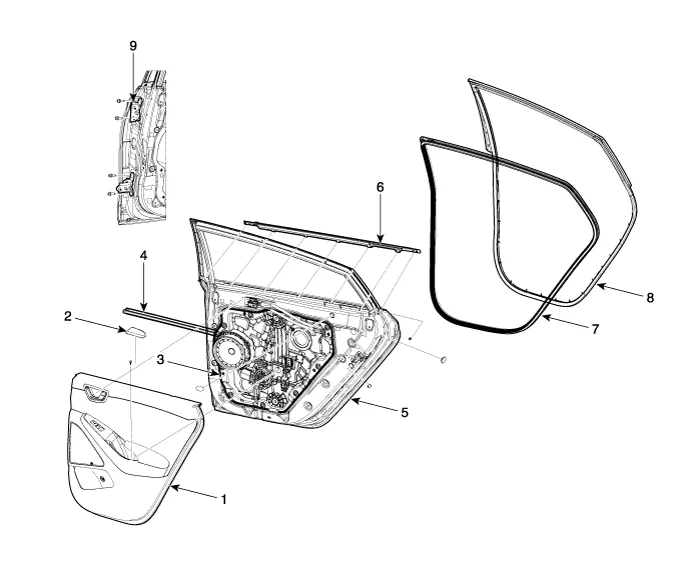

Components

1. Rear door trim
2. Rear door pull cap
3. Rear door module
4. Rear door belt inside weatherstrip
5. Rear door panel
6. Rear door belt outside weatherstrip
7. Rear door body side weatherstrip
8. Rear door side weatherstrip assembly
9. Rear door hinge


    Rear Door

    ..

    Repair procedures

    AdjustmentGlass Adjustment    • Check the glass run channel for damage or deterioration, and replace them if necessary...
