Hyundai Ioniq: Horn / Components and components location

Hyundai Ioniq (AE) 2017-2025 Service Manual / Body Electrical System / Horn / Components and components location

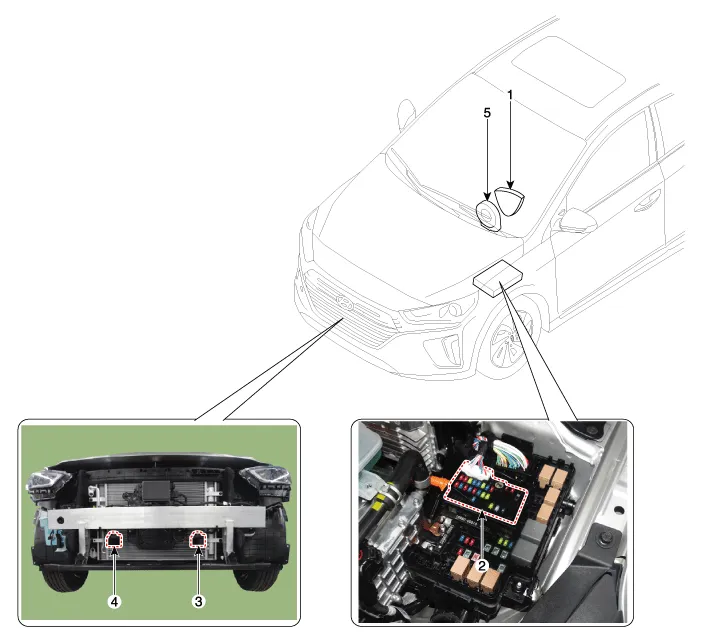

Component Location

1. Horn switch
2. Horn relay (Built - in PCB Block)
3. Horn (Low)
4. Horn (High)
5. Clock spring

    Horn

    ..

    Repair procedures

    Removal1. Remove the front bumper cover.(Refer to Body - "Front Bumper Cover")2.Remove the horn after loosening the mounting the bolt.[Low Pitch Horn][High Pitch Horn]Installation1...
