Hyundai Ioniq (AE) 2017-2025 Service Manual / Body Electrical System / Auto Lighting Control System / Components and components location

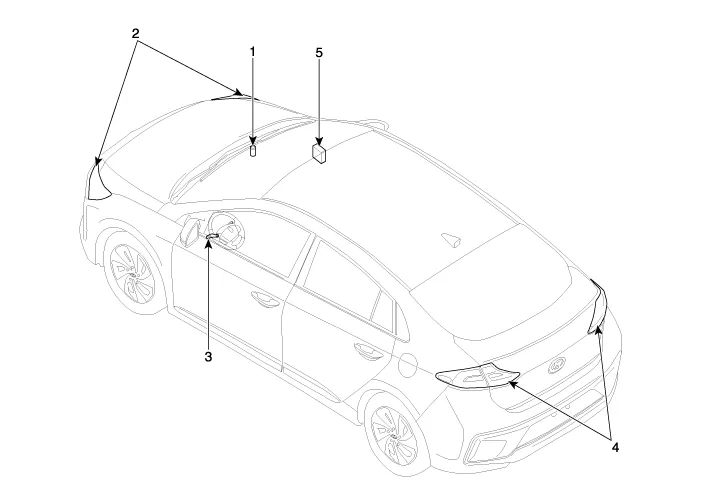

Component Location

1. Auto light sensor
2. Head lamps
3. Lighting switch (Auto)
4. Rear combination lamp
5. BCM (Body Control Module)

    Specifications

    Specifications Items Specifications Rated voltage5VLoadMax. 1mA (Relay load)Illuminations (LUX)501...

    Schematic diagrams

    C..
