Hyundai Ioniq (AE): Emergency Call System / Components and components location

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body Electrical System / Emergency Call System / Components and components location

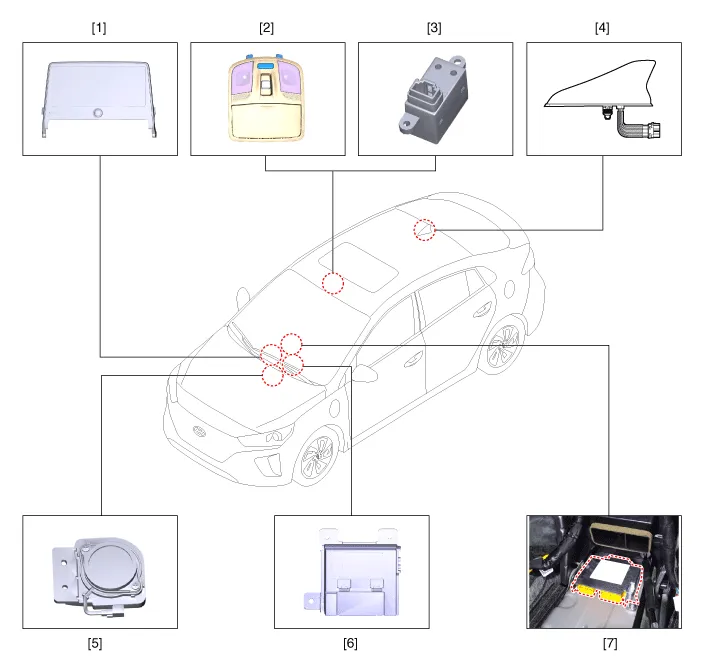

Components

1. Head unit (AVN)
2. Emergency call system button
3. Emergency call system MIC
4. Roof antenna
5. Emergency call speaker
6. Emergency call unit
7. Supplemental Restraint System Control Module (SRSCM)

    DescriptionEmergency Call (eCall)When an accident occurs or the user's request is detected, it notifies the call center of the vehicle status using the wireless network so that the center can provide necessary emergency service.
