Hyundai Ioniq (AE): Rear Corner Radar System / Components and components location

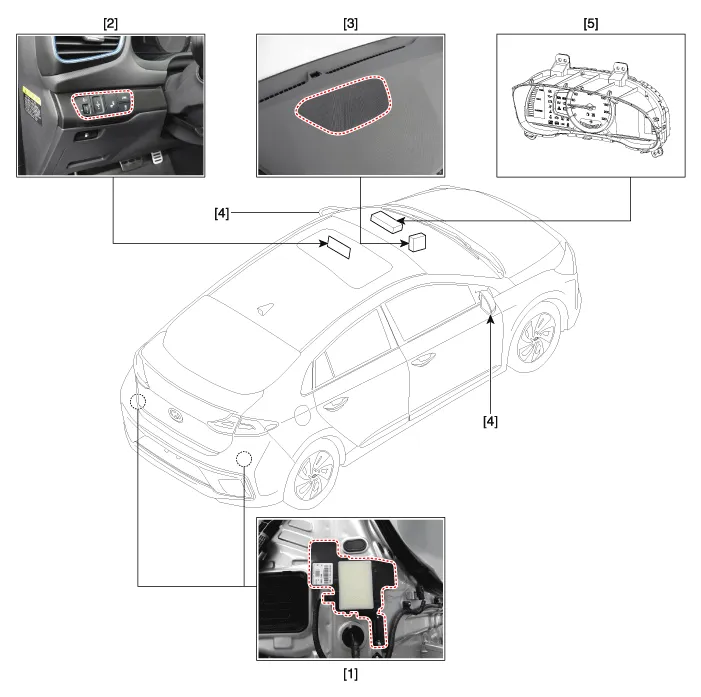

| Components |
| 1. Rear Corner Radar Unit 2. Rear Corner Safety ON/OFF Switch 3. Speaker | 4. Warning Indicator 5. Cluster |
Specifications Items Specification Rated voltageDC 12VOperating voltage9V - 16VOperating speed30㎞/h - 255㎞/hSensible distance30m (Sedan)Curvature radiusStart : More than 125m/30km/hStop : Less than 125mFrequency24 GHzNumbers2EA (Master 1EA, Slave 1EA)
DescriptionRear corner radar is a system that uses two magnetic wave radar sensors attached on the rear panel to measure the distance from the following vehicles and provides the sensing and (visual and auditory) alarm of any vehicle coming into the blind spot.
