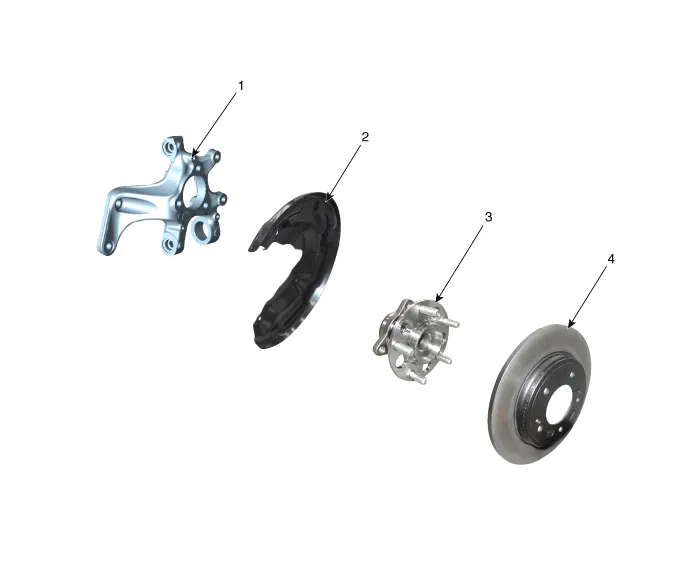

Components

1. Rear axle
2. Dust cover

3. Rear hub bearing
4. Rear brake disc

Rear Axle Assembly. Rear Hub - Carrier

Repair procedures

Removal1.Loosen the wheel nuts slightly.Raise the vehicle, and make sure it is securely supported.2.Remove the rear wheel and tire (A) from the rear hub...
