Hyundai Ioniq: Rear Suspension System / Components and components location
Hyundai Ioniq (AE) 2017-2025 Service Manual / Suspension System / Rear Suspension System / Components and components location

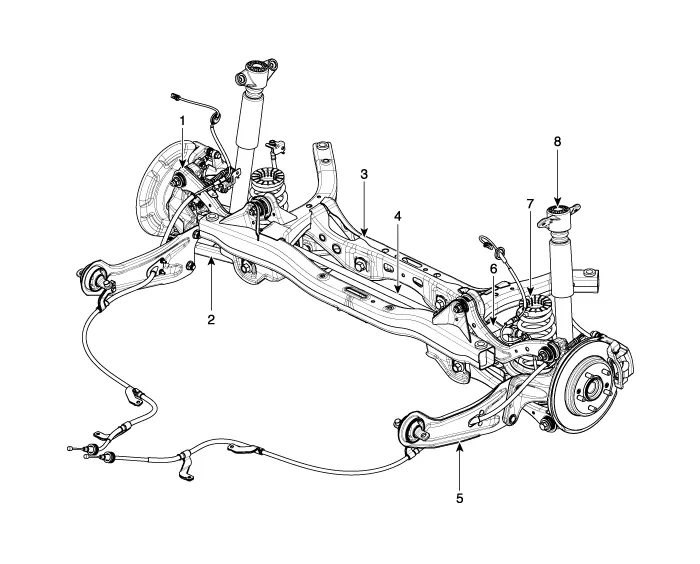

| Components Location |
| 1. Rear upper arm 2. Assist arm 3. Rear cross member 4. Rear stabilizer bar | 5. Trailing arm 6. Rear lower arm 7. Rear coil spring 8. Rear shock absorber |
