Hyundai Ioniq: Crash Pad / Crash Pad Side Cover. Components and components location

Hyundai Ioniq (AE) 2017-2025 Service Manual / Body (Interior and Exterior) / Crash Pad / Crash Pad Side Cover. Components and components location

Component Location

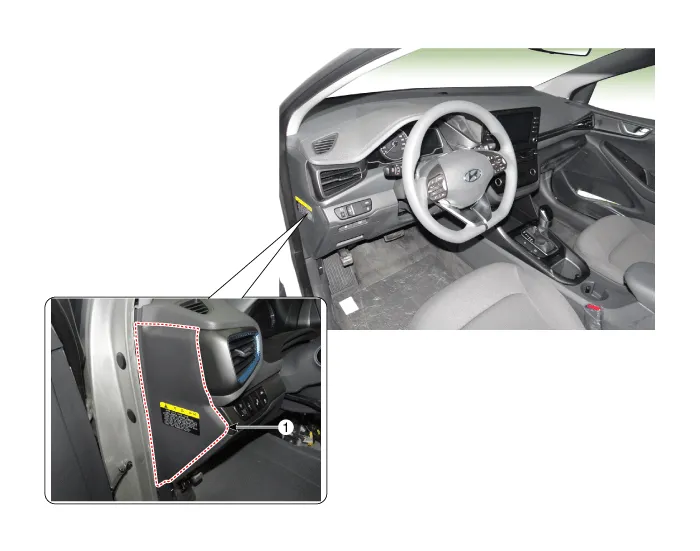

[LH]

1. Crash pad side cover [LH]

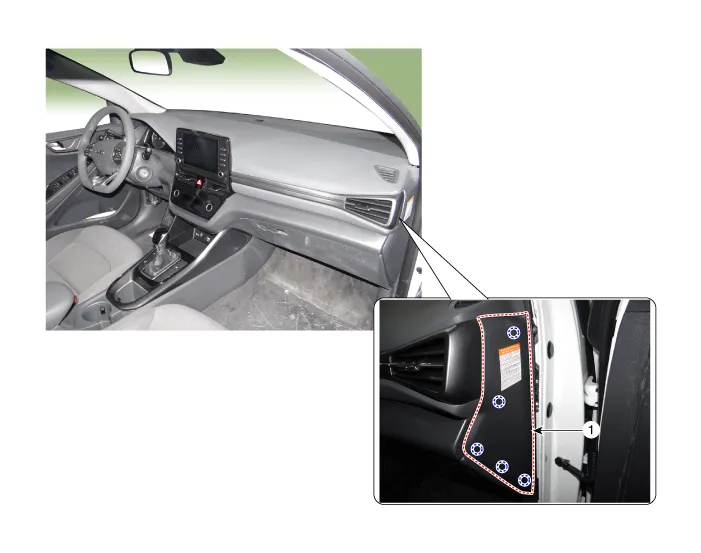

[RH]

1. Crash pad side cover [RH]
