Hyundai Ioniq: Brake System / Front Disc Brake. Components and components location

Hyundai Ioniq (AE) 2017-2025 Service Manual / Brake System / Brake System / Front Disc Brake. Components and components location

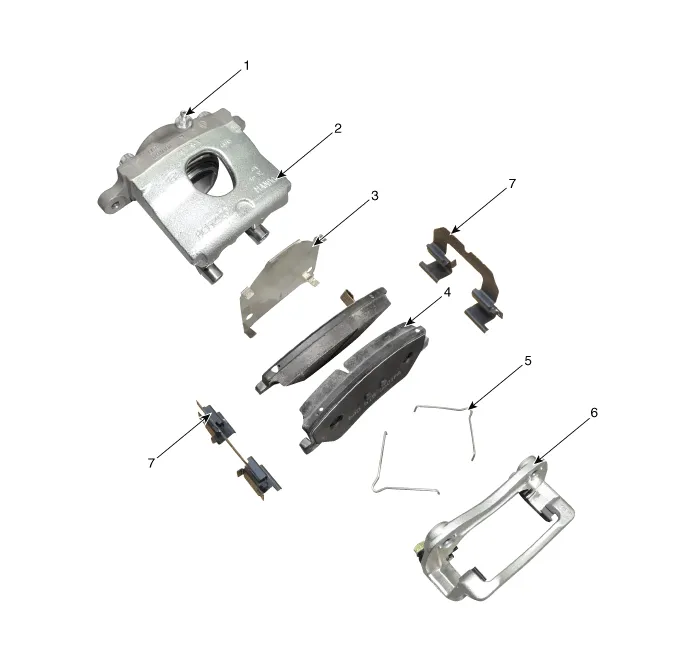

Components

1. Bleed screw
2. Caliper body
3. Pad inner shim
4. Brake pad
5. Pad return spring
6. Caliper carrier
7. Pad retainer
