Hyundai Ioniq: Head Restraints / Front seat head restraints

Hyundai Ioniq (AE) 2017-2025 Owner's Manual / Safety system of your vehicle / Seats / Head Restraints / Front seat head restraints

Hyundai Ioniq. Front seat head restraints

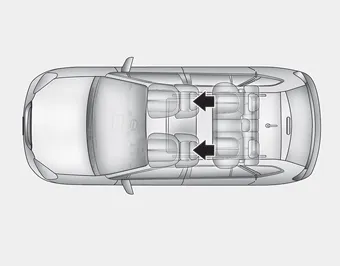

The vehicle's front and passenger's seats are equipped with adjustable head restraints for the passengers safety and comfort.

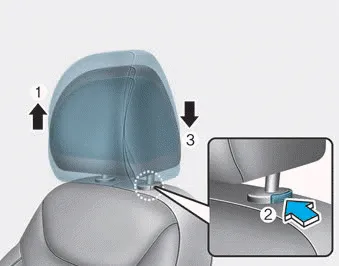

Adjusting the height up and down

Hyundai Ioniq. Front seat head restraints

To raise the head restraint:

1. Pull it up to the desired position (1).

To lower the head restraint:

1. Push and hold the release button (2) on the head restraint support.

2. Lower the head restraint to the desired position (3).

Hyundai Ioniq. Front seat head restraints

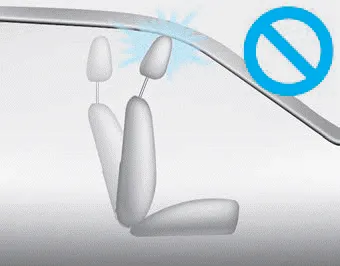

NOTICE

If you recline the seatback towards the front with the head restraint and seat cushion raised, the head restraint may come in contact with the sunvisor or other parts of the vehicle.

Removal/Reinstallation

Hyundai Ioniq. Front seat head restraints

■ Type A

Hyundai Ioniq. Front seat head restraints

■ Type B

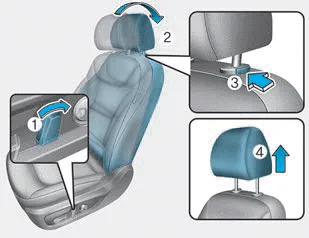

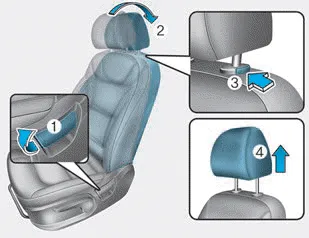

To remove the head restraint:

1. Recline the seatback (2) rearward using the seatback angle lever/ switch (1).

2. Raise the head restraint as far as it can go.

3. Press the head restraint release button (3) while pulling the head restraint up (4).

Hyundai Ioniq. Front seat head restraints

■ Type A

Hyundai Ioniq. Front seat head restraints

■ Type B

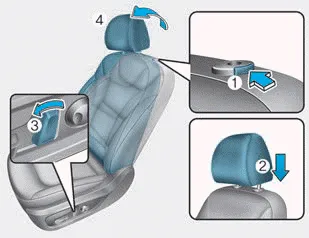

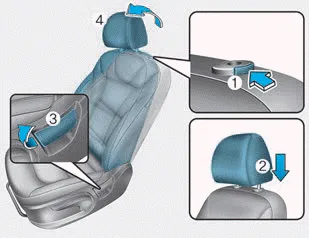

To reinstall the head restraint:

1. Put the head restraint poles (2) into the holes while pressing the release button (1).

2. Adjust the head restraint to the appropriate height.

3. Adjust the seatback (4) forward using the seatback angle lever/ switch (3).

    Head Restraints

    The vehicle's front and rear seats have adjustable head restraints. The head restraints provide comfort for passengers, but more importantly they are designed to help protect passengers from whiplash and other neck and spinal injuries during an accident, especially in a rear impact collision...

    Rear seat head restraints

    The rear seats are equipped with head restraints in all the seating positions for the passenger's safety and comfort. Adjusting the height up and down To raise the head restraint: 1...
