Hyundai Ioniq: Exterior Lights / High beam operation

Hyundai Ioniq (AE) 2017-2025 Owner's Manual / Convenient features of your vehicle / Lighting / Exterior Lights / High beam operation

Hyundai Ioniq. High beam operation

To turn on the high beam headlamp, push the lever away from you. The lever will return to its original position.

The high beam indicator will light when the headlamp high beams are switched on.

To turn off the high beam headlamp, pull the lever towards you. The low beams will turn on.

WARNING

Do not use high beam when there are other vehicles approaching you. Using high beam could obstruct the other driver's vision.

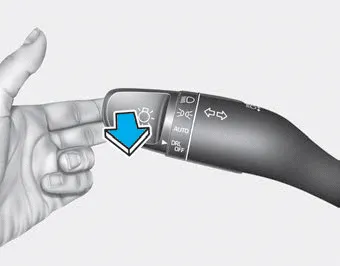

Hyundai Ioniq. High beam operation

To flash the high beam headlamp, pull the lever towards you, then release the lever. The high beams will remain ON as long as you hold the lever towards you.
