Hyundai Ioniq: IMS(Integrated Memory System) / Memory power seat switch. Components and components location

Hyundai Ioniq (AE) 2017-2025 Service Manual / Body Electrical System / IMS(Integrated Memory System) / Memory power seat switch. Components and components location

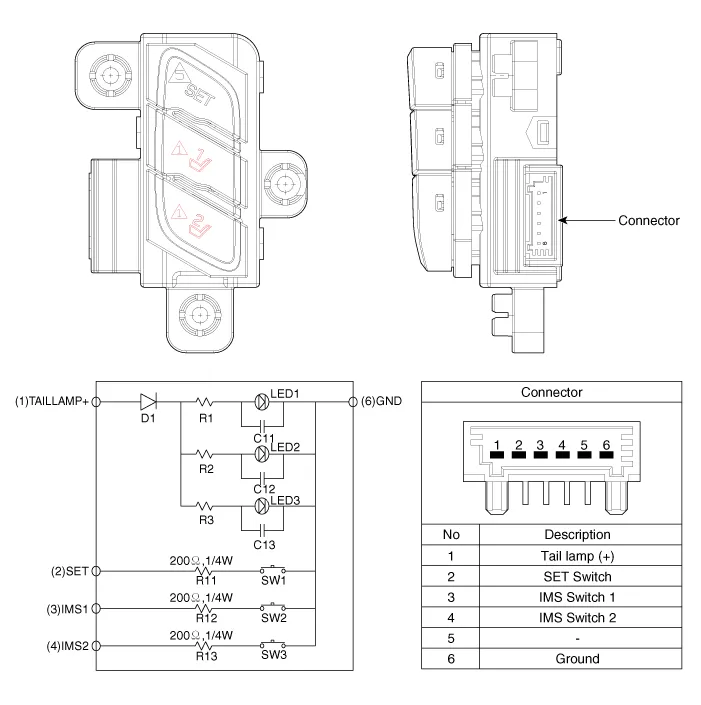

Components

Memory power seat unit. Repair procedures

Removal1.Disconnect the negative (-) battery terminal.2.Remove the driver seat assembly.(Refer to Body - "Front Seat Assembly")3.Loosening the IMS unit mounting screws...

Memory power seat switch. Repair procedures

Removal1.Disconnect the negative (-) battery terminal.2.Remove the driver door trim.(Refer to Body - "Front Door Trim")3.Disconnect the memory power seat switch connector (A)...
