Hyundai Ioniq: Rear Seat Belt / Rear Seat Belt Buckle. Components and components location

Hyundai Ioniq (AE) 2017-2025 Service Manual / Body (Interior and Exterior) / Rear Seat Belt / Rear Seat Belt Buckle. Components and components location

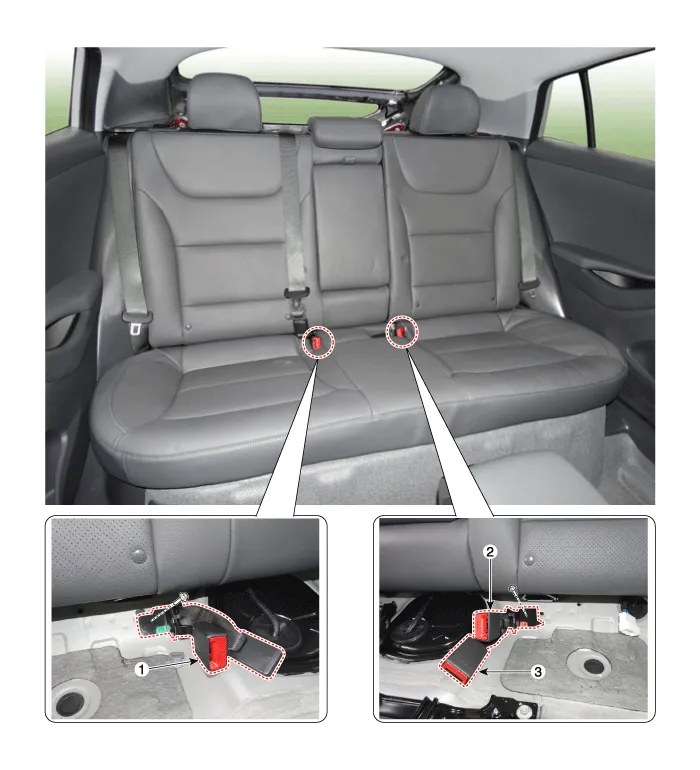

Component Location

1. Rear seat belt buckle [RH]
2. Rear seat belt buckle [LH]
3. Rear center seat belt buckle

    Rear Center Seat Belt Retractor. Repair procedures

    Replacement    • When installing the belt, make sure not to damage the retractor.1.Remove the rear seat back cover...

    Rear Seat Belt Buckle. Repair procedures

    Replacement1.Remove the rear seat cushion assembly.(Refer to Rear Seat - "Rear Seat Cushion Assembly")2.Loosen the mounting bolt, remove the rear seat belt buckle (A)...
