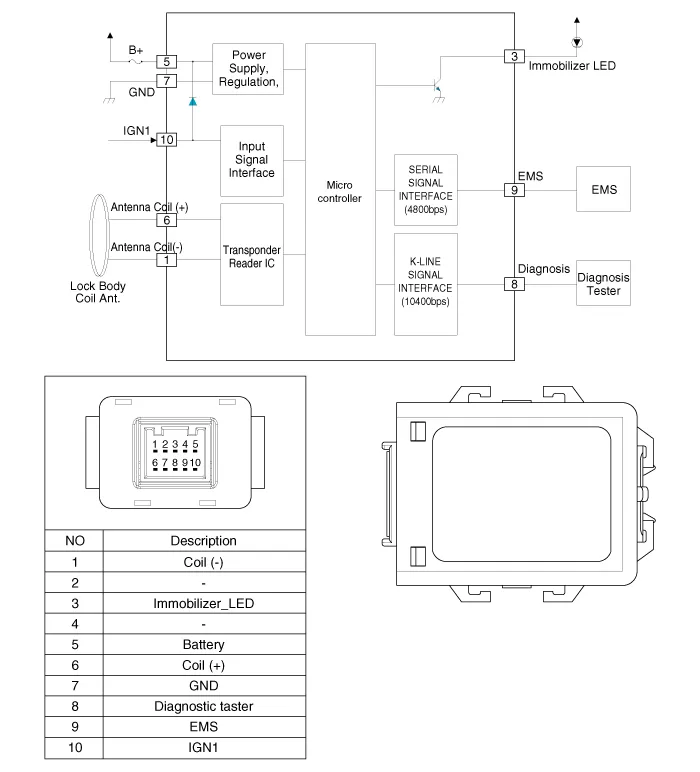

Hyundai Ioniq: Immobilizer System / Schematic diagrams

Immobilizer System

..

Description and operation

DescriptionThe immobilizer system will disable the vehicle unless the proper ignition key is used, in addition to the currently available anti-theft systems such as car alarms, the immobilizer system aims to drastically reduce the rate of auto theft...
