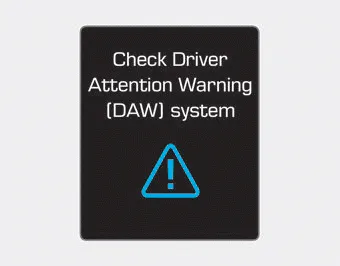

Check Driver Attention Warning (DAW) system

Hyundai Ioniq. System Malfunction

When the warning message appears, the system is not working properly. In this case, have the vehicle inspected by an authorized HYUNDAI dealer.

WARNING

  • The Driver Attention Warning (DAW) system is not a substitute for safe driving practices, but a convenience function only. It is the responsibility of the driver to always drive cautiously to prevent unexpected and sudden situations from occurring. Pay attention to the road conditions at all times.
  • The system may suggest a break according to the driver's driving pattern or habits even if the driver doesn't feel fatigue.
  • The driver, who feels fatigued, should take a break, even though there is no break suggestion by the Driver Attention Warning (DAW) system.

NOTICE

The Driver Attention Warning system utilizes the camera sensor on the front windshield for its operation. To keep the camera sensor in the best condition, you should observe the followings:

  • NEVER install any accessories or stickers on the front windshield, nor tint the front windshield.
  • NEVER locate any reflective objects (i.e. white paper, mirror) over the dashboard. Any light reflection may cause a malfunction of the Driver Attention Alert (DAW) system.
  • Pay extreme caution to keep the camera sensor out of water.
  • NEVER arbitrarily disassemble the camera assembly, nor apply any impact on the camera assembly.

CAUTION

The Driver Attention Warning (DAW) system may not properly operate with limited alerting in the following situations:

  • The lane detection performance is limited. (For more information, refer to "Lane Keeping Assist (LKA) system" in this chapter.)
  • The vehicle is violently driven or is abruptly turned for obstacle avoidance (e.g. construction area, other vehicles, fallen objects, bumpy road).
  • Forward drivability of the vehicle is severely undermined (possibly due to wide variation in tire pressures, uneven tire wear-out, toe-in/toe-out alignment).
  • The vehicle drives on a curvy road.
  • The vehicle drives on a bumpy road.
  • The vehicle drives through a windy area.
  • The vehicle is controlled by the following driving assist systems:
    - Lane Keeping Assist (LKA) system
    - Forward Collision-avoidance Assist (FCA) system
    - Smart Cruise Control (SCC) system

CAUTION

Playing the vehicle audio system at high volume may offset the Driver Attention Warning (DAW) system warning sounds.

    Resetting the System, System Standby

    Resetting the System The last break time is set to 00:00 and the driver's attention level is set to 5 (very attentive) when the driver resets the Driver Attention Warning (DAW) system...
