Hyundai Ioniq (AE): Cooling System / Thermostat. Components and components location

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Engine Mechanical System / Cooling System / Thermostat. Components and components location

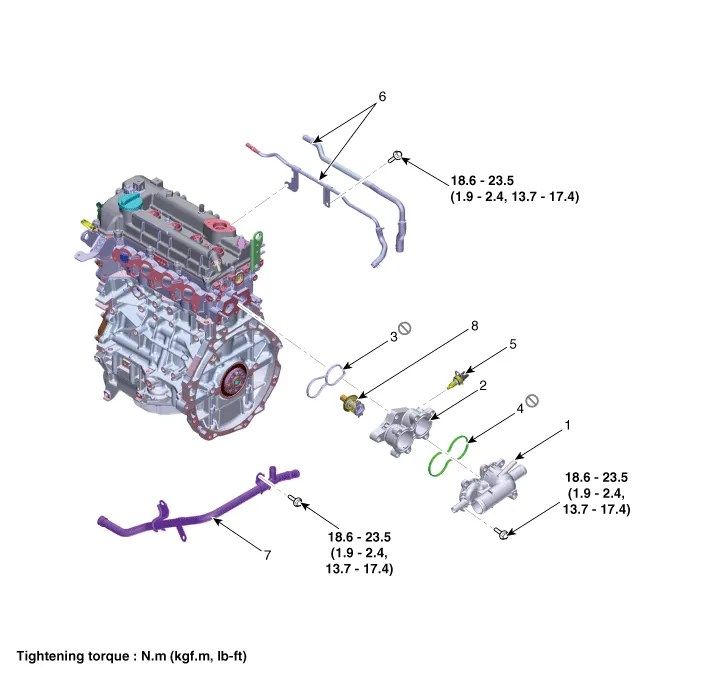

Components

1. Water inlet fitting

2. Thermostat

❮Water pump. Troubleshooting

TroubleshootingWater Pump Symptoms Possible Causes Remedy Coolant leakage• From the bleed hole of the water pumpVisually check• Check leaks after about ten-minute warming up.

Thermostat. Repair procedures❯

Removal and Installation • Disassembly of the thermostat would have an adverse effect, causing a lowering of cooling efficiency.
