Hyundai Ioniq: Heater / Auto Defoging Actuator. Components and components location

Hyundai Ioniq (AE) 2017-2025 Service Manual / Heating, Ventilation and Air Conditioning / Heater / Auto Defoging Actuator. Components and components location

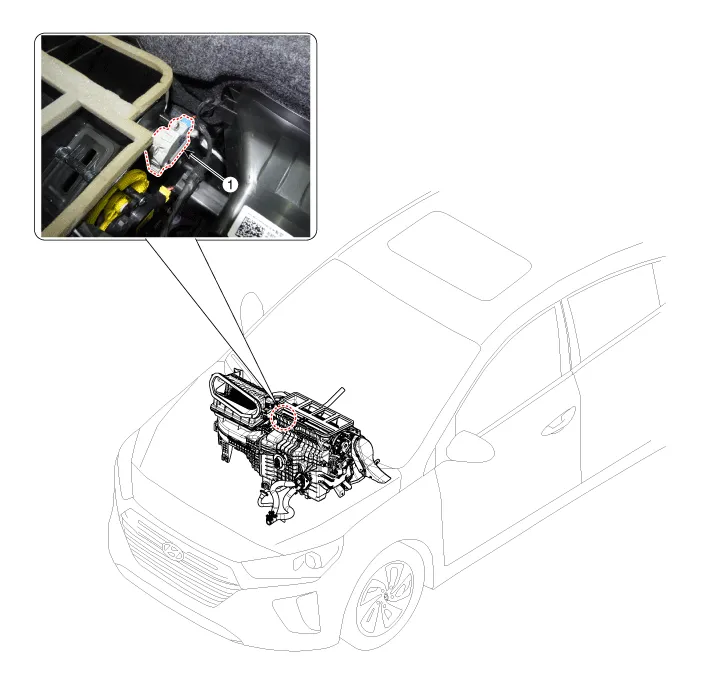

Components Location

1. Auto logging actuator


    Mode Control Actuator. Repair procedures

    Inspection1.Turn the ignition switch OFF.2.Disconnect the mode control actuator connector.3.Verify that the mode control actuator operates to the defrost mode when connecting 12V to terminal 3 and grounding terminal 4...

    Auto Defoging Actuator. Description and operation

    DescriptionThe auto defogging sensor is installed on front window glass. The sensor judges and sends signal if moisture occurs to blow out wind for defogging...

    Other information:

    Hyundai Ioniq (AE) 2017-2025 Service Manual: Engine Coolant Temperature Sensor (ECTS). Repair procedures


    Inspection1.Turn the ignition switch OFF.2.Remove the ECTS.(Refer to "Removal")3.After immersing the thermistor of the sensor into engine coolant, measure resistance between the ECTS terminals 1 and 3.4.Check that the resistance is within the specification...

    Hyundai Ioniq (AE) 2017-2025 Service Manual: Motor Control Unit(MCU). Components and components location


    Component location1. HPCU (Hybrid Power Control Unit)(LDC+MCU+HCU+Reservoir)2. Hybrid drive motor3. Hybrid starter generator (HSG)4. Electrical radiator5. Electric water pump (EWP)Components1. HPCU (Hybrid Power Control Unit)2. HPCU tray3. HPCU cover4...
