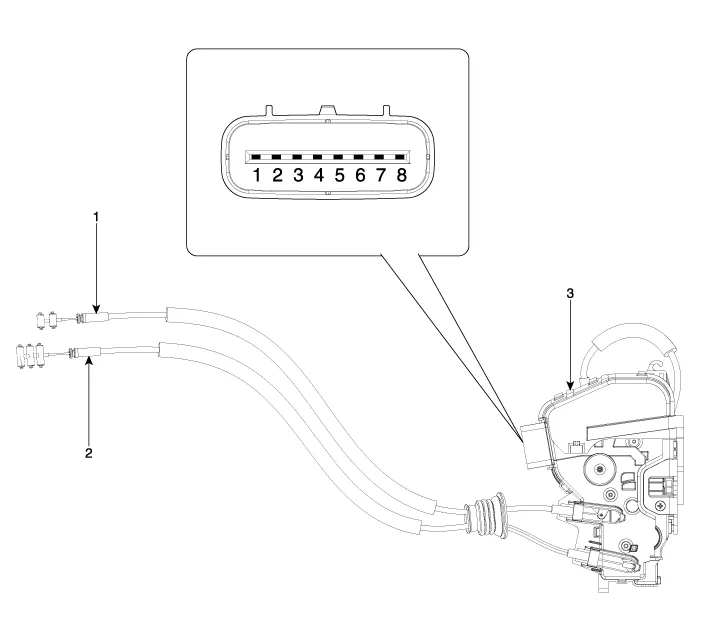

Conponents

1. Door lock/unlock knob cable
2. Door inside handle cable

3. Door Latch

Components and components location

Component Location1. DDM (Driver Door Module)2. ADM (Assist Door Module)3. SJB (Smart Junction Block)4. Door lock knob5. Tailgate lid actuator6. Door latch module7...

Power Door Lock Module. Repair procedures

Inspection • Wrap the protective tape on the tool to disassemble with the screwdriver or remover. • Use caution in keeping and handling during disassembling/assembling because it is easily contaminated with lubricant and oil...
