Hyundai Ioniq: Tailgate Glass / Components and components location

Hyundai Ioniq (AE) 2017-2025 Service Manual / Body (Interior and Exterior) / Tailgate Glass / Components and components location

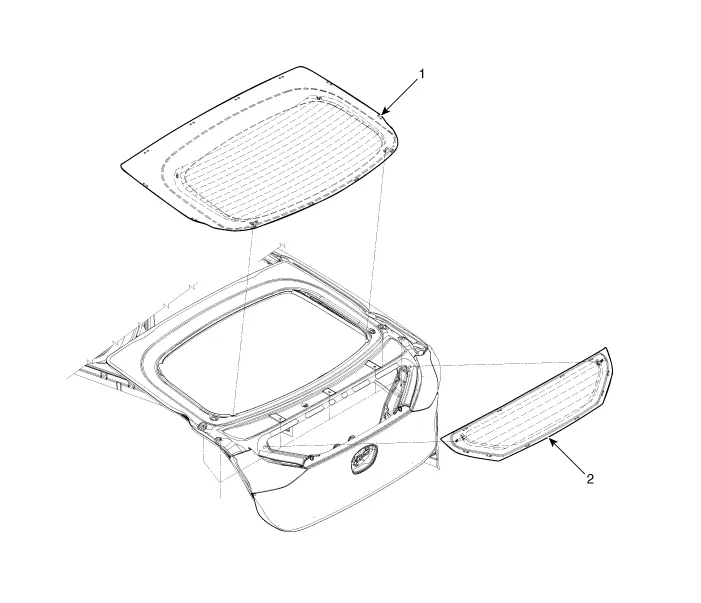

Components

1. Tailgate upper glass
2. Tailgate lower glass

    Tailgate Glass

    ..

    Tailgate Glass Upper Glass. Repair procedures

    Removal    • Put on gloves to prevent hand injuries.    • Use seat covers to avoid damaging any surfaces...
