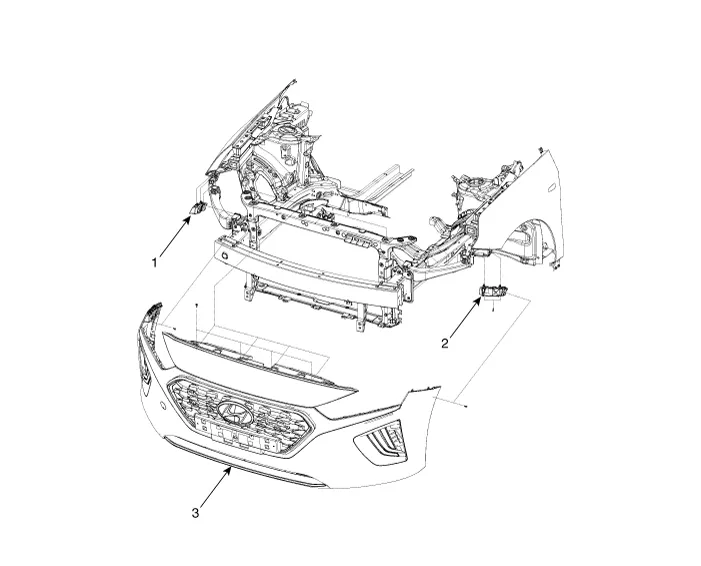

Components

1. Front bumper side bracket [LH]
2. Front bumper side bracket [RH]
3. Front bumper cover

    Component Location 1. Front bumper cover
