Hyundai Ioniq: Motor Driven Power Steering / Components and components location

Hyundai Ioniq (AE) 2017-2025 Service Manual / Steering System / Motor Driven Power Steering / Components and components location

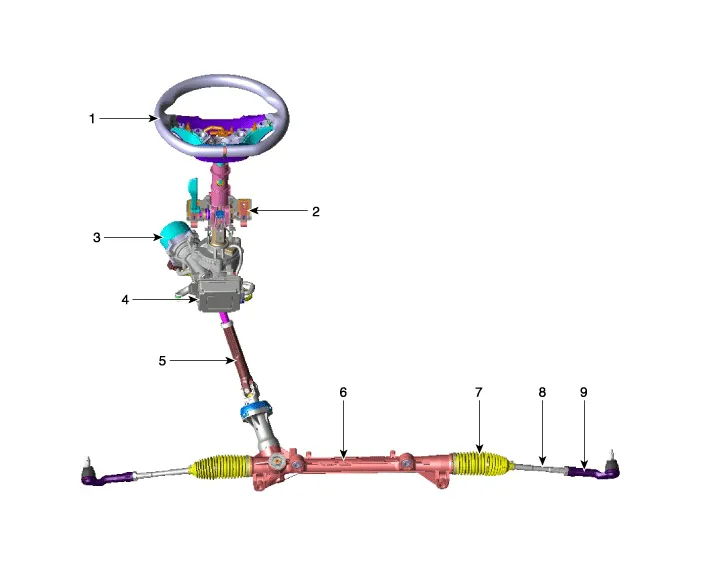

Components Location

1. Steering wheel
2. Steering column
3. MDPS motor
4. MDPS ECU
5. Universal joint
6. Steering gear box
7. Bellows
8. Tie rod
9. Tie rod end

    Description and operation

    Description MDPS (Motor Dirven Power Steering) system uses an electric motor to assist the steering force and it is an engine operation independent steering system...
