Hyundai Ioniq: Interior Trim / Door Scuff Trim. Components and components location

Hyundai Ioniq (AE) 2017-2025 Service Manual / Body (Interior and Exterior) / Interior Trim / Door Scuff Trim. Components and components location

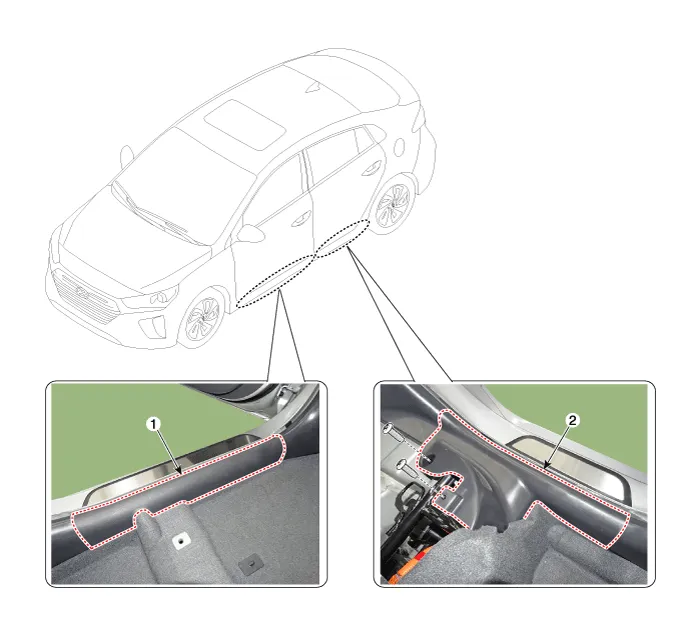

Component Location

1. Front door scuff trim

2. Rear door scuff trim

Components and components location

Components1. Cowl side trim 2. Center pillar lower trim 3. Front pillar trim 4. Front door scuff trim 5. Center pillar upper trim 6. Rear door scuff trim 7...

Door Scuff Trim. Repair procedures

Replacement[Front door scuff trim] • Put on gloves to prevent hand injuries. • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components...
