Hyundai Ioniq: Driveshaft Assembly / Front Driveshaft. Components and components location

Hyundai Ioniq (AE) 2017-2025 Service Manual / Driveshaft and axle / Driveshaft Assembly / Front Driveshaft. Components and components location

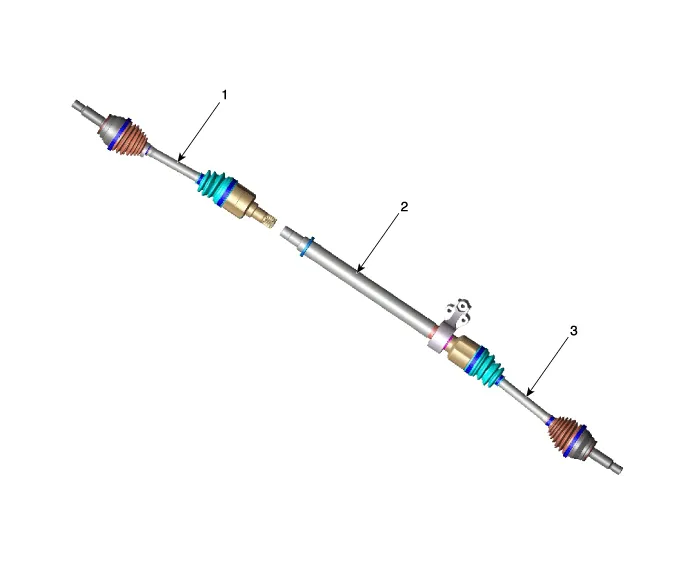

Components

1. Driveshaft (LH)
2. Inner shaft bearing bracket
3. Driveshaft (RH)

    Driveshaft Assembly

    ..

    Front Driveshaft. Repair procedures

    Removal1.Loosen the wheel nuts slightly.Raise the vehicle, and make sure it is securely supported.2.Remove the front wheel and tire (A) from the front hub...
