Hyundai Ioniq (AE): Front Seat / Front Seat Frame Assembly. Components and components location
| Component Location |

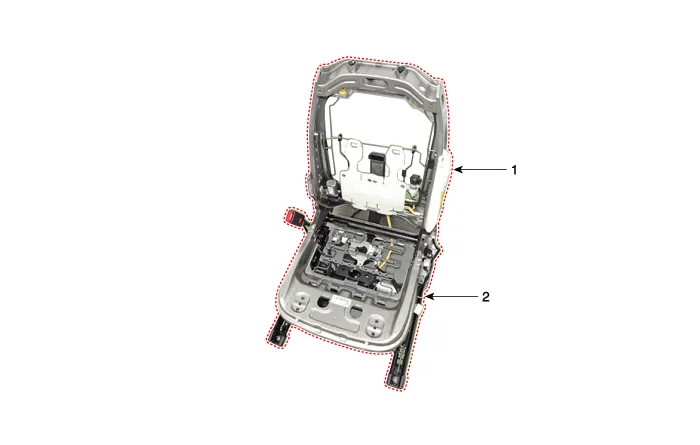

| 1. Front seat back frame assembly | 2. Front seat cushion frame assembly |
Replacement • Put on gloves to prevent hand injuries. • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Replacement • Put on gloves to prevent hand injuries. • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
