Hyundai Ioniq (AE) 2017-2025 Service Manual / Body (Interior and Exterior) / Hood / Hood Assembly. Components and components location

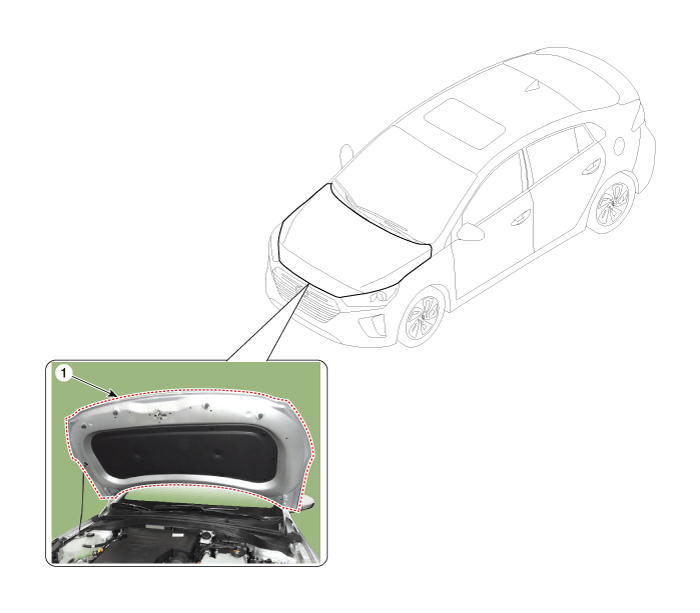

Component Location

1. Hood assembly

Repair procedures

Adjustment1.After loosening the hinge (A) mounting bolt, adjust the hood (B) by moving it up and down or from side to side and tighten the bolt.2.Adjust the hood height by moving the hood overslam bumpers (C) up and down...

Hood Insulator Pad. Repair procedures

Replacement1.Using a clip remover, remove the clips and then the hood insulator pad (A). • Be careful not to scratch the hood panel...
