Hyundai Ioniq: Hood / Hood Latch Release Handle. Components and components location

Hyundai Ioniq (AE) 2017-2025 Service Manual / Body (Interior and Exterior) / Hood / Hood Latch Release Handle. Components and components location

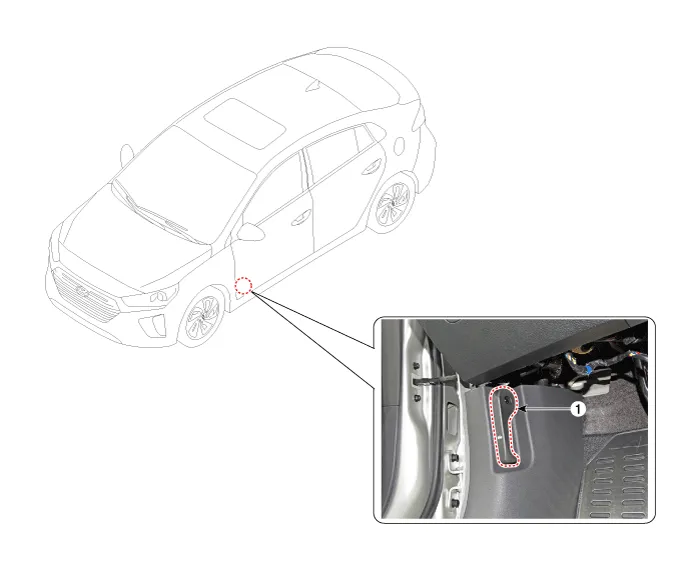

Component Location

1. Hood latch release handle
