Hyundai Ioniq (AE): Your vehicle at a glance / Hybrid Vehicle Exterior Overview

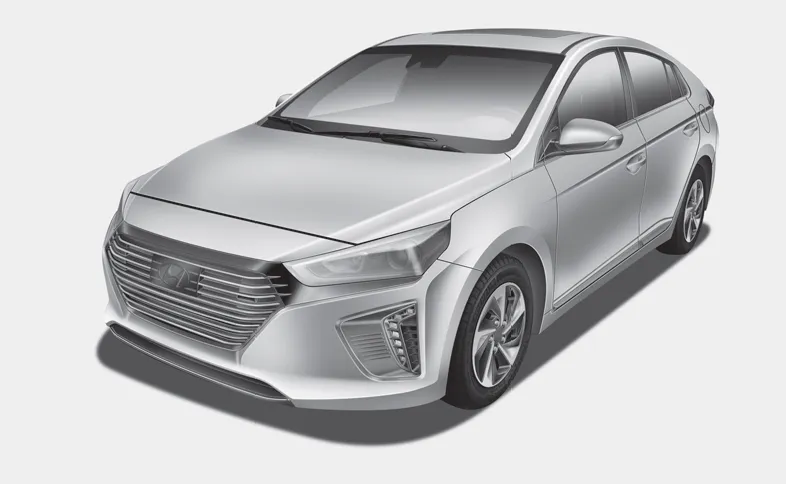

â– Front view
1. Hood
2. Windows
3. Sunroof
4. Wiper blade
5. Tires and wheels
6. Headlamp
7. Outer side view mirror
8. Daytime running light (DRL)
â– Rear view
1. Door lock
2. Fuel filler door
3. Antenna
4. Rear combination lamp
5. High mounted stop lamp
6. Liftgate
7. Rear view monitor
8. Parking Distance Warning system (Reverse)
9. Towing hook
1. Door lock/unlock button 2. Driver position memory system 3. Side view mirror control switch 4. Central door lock switch 5. Power window switches 6.
Other information:
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Heater Core. Repair procedures
Replacement1.Disconnect the negative (-) battery terminal. 2.Remove the heater and blower assembly.(Refer to Heater - "Heater Unit") 3.Loosen the mounting screws and remove the driver's temperature control actuator (A).4.Remove the heater core cover (A) after loosening the mounting screws.
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Blower Unit. Components and components location
Component Location1. Blower unit assembly Components1. Duct Seal2. Intake duct case3. Air intake door assembly4. Intake door5. Seal6. Intake duct case (A)7. Air filter cover (A)8. Intake actuator9. Air filter cover10. Air filter 11. Blower unit pad12.
