Hyundai Ioniq: Intake and Exhaust System / Intake Manifold. Components and components location

Hyundai Ioniq (AE) 2017-2025 Service Manual / Engine Mechanical System / Intake and Exhaust System / Intake Manifold. Components and components location

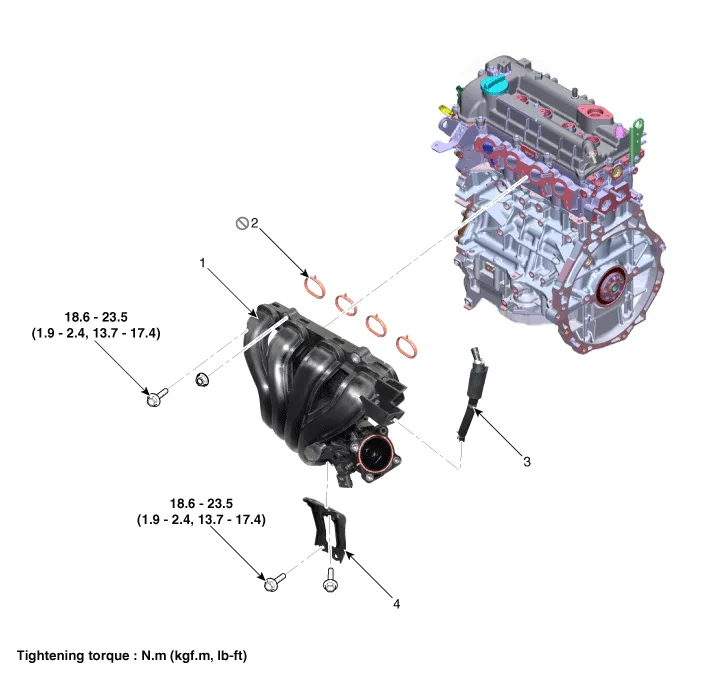

Components

1. Intake manifold assembly
2. Intake manifold gasket
3. PCV hose
4. Intake manifold stay

    Air Cleaner. Repair procedures

    Removal and InstallationAir Cleaner Assembly1.Disconnect the battery negative terminal.2.Remove the air duct and air cleaner assembly. Tightening torque : Hose clamp : 2...

    Intake Manifold. Repair procedures

    Removal and Installation1.Disconnect the battery negative terminal.2.Remove the air cleaner assembly.(Refer to Intake and Exhaust System - "Air Cleaner")3...
