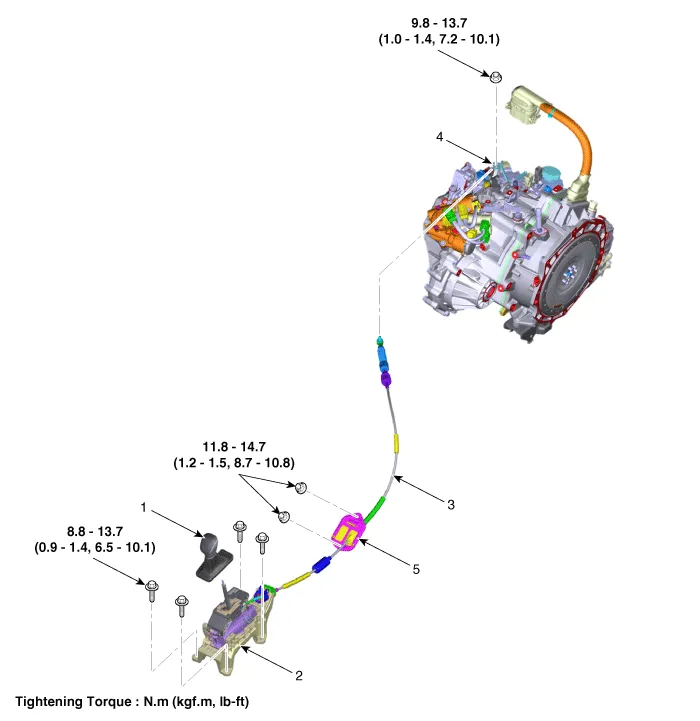

Components

1. Shift lever knob & boots assembly
2. Shift lever assembly
3. Shift cable
4. Manual control lever
5. Shift cable retainer

    Shift Lever. Repair procedures

    Removal 1.Remove the shift lever knob & boots (A) pull both of it up. 2.Remove the floor console assembly.(Refer to Body - "Floor Console")3.Disconnect the connector (A)...

    Shift Cable. Repair procedures

    Removal    • Be sure to read and follow the "General Safety Information and Caution" before doing any work related with the high voltage system...
