Hyundai Ioniq (AE) 2017-2025 Service Manual / Body (Interior and Exterior) / Sunroof / Sunroof Glass. Components and components location

Components Location

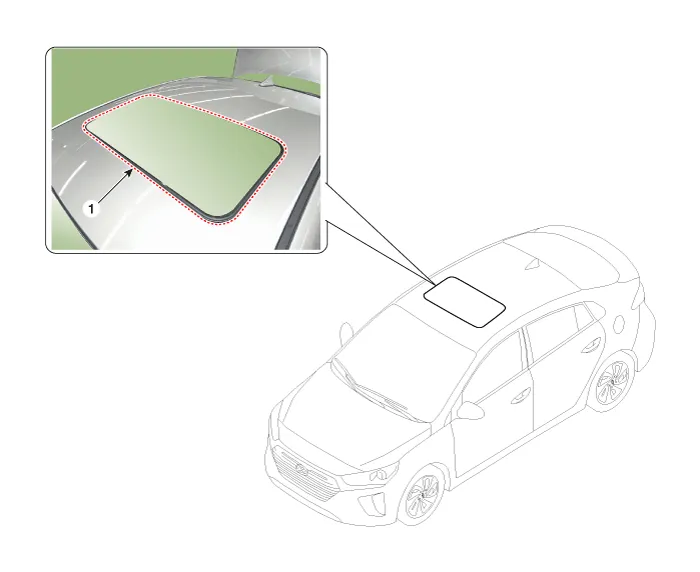

1. Sunroof glass


    Repair procedures

    AdjustmentInspect Glass Alignment1.Inspect the step height between the roof panel (A) and the glass weatherstrip (B) and then adjust it if necessary. Alignment adjustment Standard value [mm(in...

    Sunroof Glass. Repair procedures

    Replacement    • Put on glove to protect your hands.1.Close the sunroof glass completely by pressing the sunroof switch...
