Hyundai Ioniq (AE) 2017-2025 Service Manual / Body (Interior and Exterior) / Tailgate / Tailgate Assembly. Components and components location

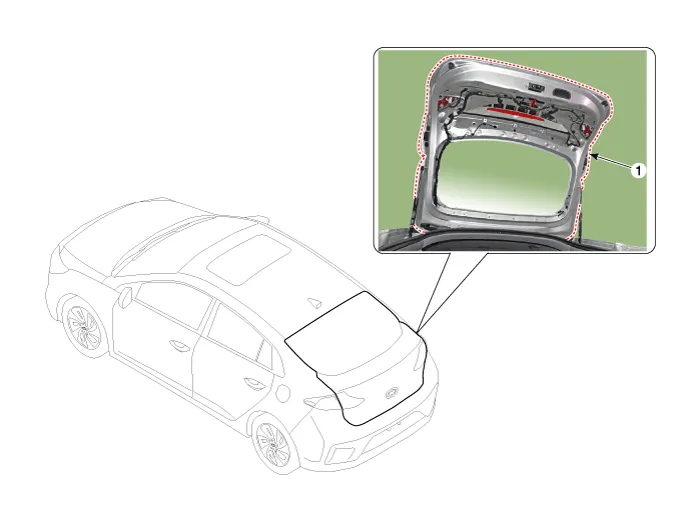

Component Location

1. Tailgate assembly


    Repair procedures

    Adjustment1.Place the car on a flat surface and check whether the body and trunk lid are well-aligned. 2.After loosening the tailgate hinge (A) mounting bolt, adjust the tailgate by moving it up and down or from side to side...

    Tailgate Assembly. Repair procedures

    Replacement    • Wear gloves to protect hands from injury.    • When removing and installing the tailgate, an assistant is needed...
