Hyundai Ioniq (AE) 2017-2025 Service Manual / Advanced Driver Assistance System (ADAS) / Rear Corner Radar System / Warning Indicator. Components and components location

Components

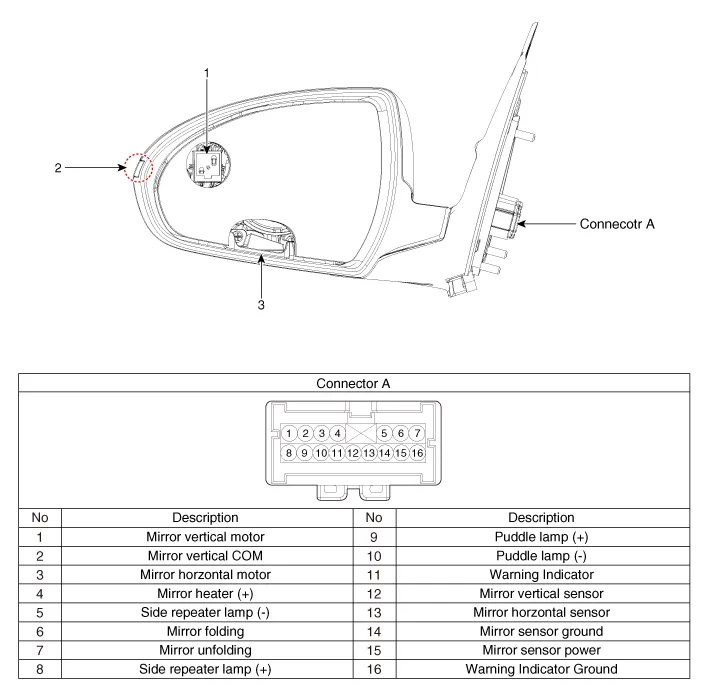

1. Warning Indicator
2. Side repeater lamp
3. Puddle lamp

    Rear Corner Safety ON/OFF Switch. Repair procedures

    Inspection1.Disconnect the negative (-) battery terminal.2.Remove the crash pad lower panel.(Refer to Body - "Crash Pad Lower Panel")3.Remove the lower crash pad switch assembly (A) after disengaging the mounting clip...

    Warning Indicator. Repair procedures

    RemovalWarning Indicator1.Disconnect the negative (-) battery terminal.2.Remove the mirror (A).InstallationWarning Indicator1.Install the outside mirror...
