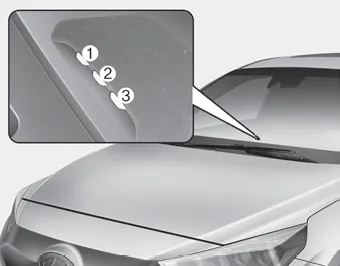

Hyundai Ioniq: Trickle Charge / Checking Charging Status

How to Connect Portable Charger (ICCB: In-Cable Control Box)

1. Connect the plug to a household electric outlet. 2. Check if the power lamp (green) illuminates on the control box. 3. Depress the brake pedal and apply the parking brake...

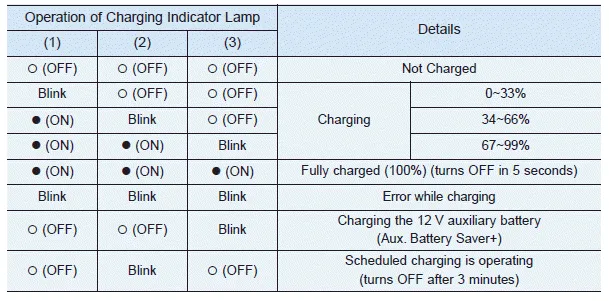

Charging Status Indicator Lamp for Portable Charger

..
