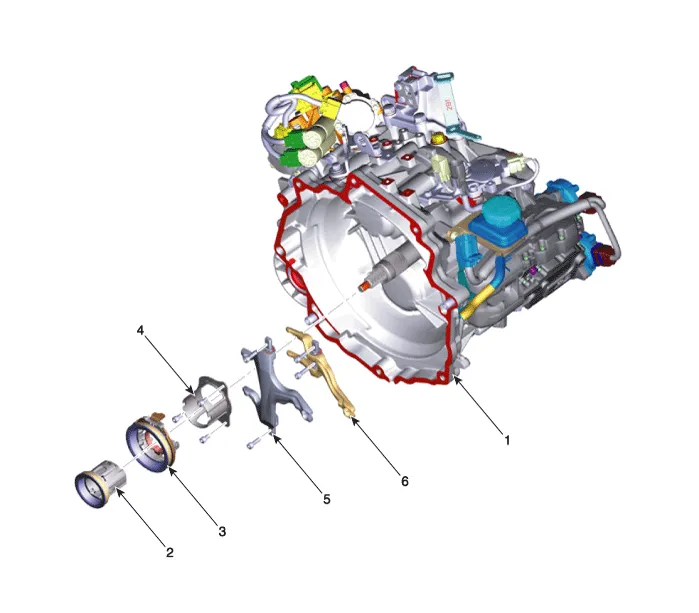

Components

1. Clutch housing
2. Engagement bearing 2 (Even)
3. Engagement bearing 1 (Odd)

4. Engagement bearing sleeve
5. Engagement frok 1 (Odd)
6. Engagement frok 2 (Even)

Dual Clutch Assembly. Repair procedures

Removal1.Remove the dual clutch transmission from the vehicle.(Refer to Dual Clutch Transmission System - "Dual Clutch Transmission")2.Remove the hybrid motor assembly from the dual clutch transmission assembly...

Clutch Engagement Fork and Engagement Bearing. Repair procedures

Removal1.Remove the dual clutch transmission from the vehicle. (Refer to Dual Clutch Transmission System - "Dual Clutch Transmission")2.Remove the dual clutch assembly...
