Hyundai Ioniq: Windshield Wiper/Washer / Front Wiper Motor. Components and components location

Hyundai Ioniq (AE) 2017-2025 Service Manual / Body Electrical System / Windshield Wiper/Washer / Front Wiper Motor. Components and components location

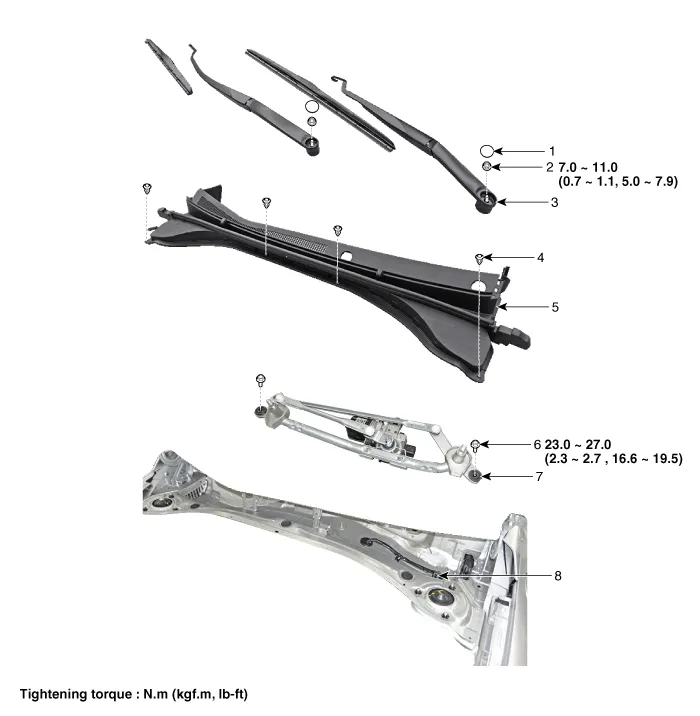

Component Location

1. Cap
2. Nut
3. Wiper arm & blade
4. Rivet

5. Cowl top cover
6. Bolt
7. Wiper motor & linkage assembly
8. Wiper motor connector

Windshield Wiper-Washer Switch. Repair procedures

Removal1.Disconnect the negative (-) battery terminal.2.If it is necessary to remove multifunction switch assembly, remove the steering wheel.(Steering System - "Steering Wheel")3...

Front Wiper Motor. Repair procedures

Removal1.Disconnect the negative (-) battery terminal.2.If necessary, release the wiper blade fixing clip by pulling up and remove the wiper blade from the inside radius of wiper arm...
