Hyundai Ioniq: Fuel Delivery System / Fuel Pressure Sensor (FPS). Specifications

Hyundai Ioniq (AE) 2017-2025 Service Manual / Engine Control/Fuel System / Fuel Delivery System / Fuel Pressure Sensor (FPS). Specifications

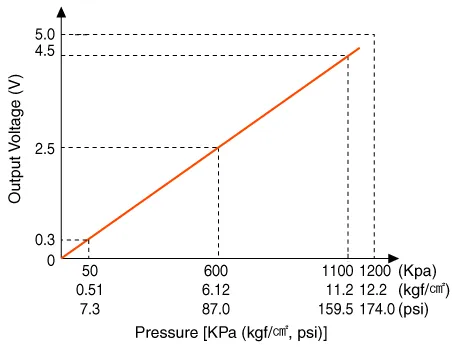

Specification
Pressure
[KPa (kgf/cm², psi)]
Output Voltage (V)
50 (0.51, 7.3)
0.3
600 (6.12, 87.0)
2.5
1100 (11.2, 159.5)
4.5

    Fuel Pressure Sensor (FPS). Description and operation

    DescriptionThe fuel pressure sensor (FPS) is installed on the top of the low pressure fuel pump and measures the pressure in the low pressure fuel line...

    Fuel Pressure Sensor (FPS). Schematic diagrams

    C..
