Hyundai Ioniq: ESP(Electronic Stability Program) System / Rear Wheel Speed Sensor. Components and components location

Hyundai Ioniq (AE) 2017-2025 Service Manual / Brake System / ESP(Electronic Stability Program) System / Rear Wheel Speed Sensor. Components and components location

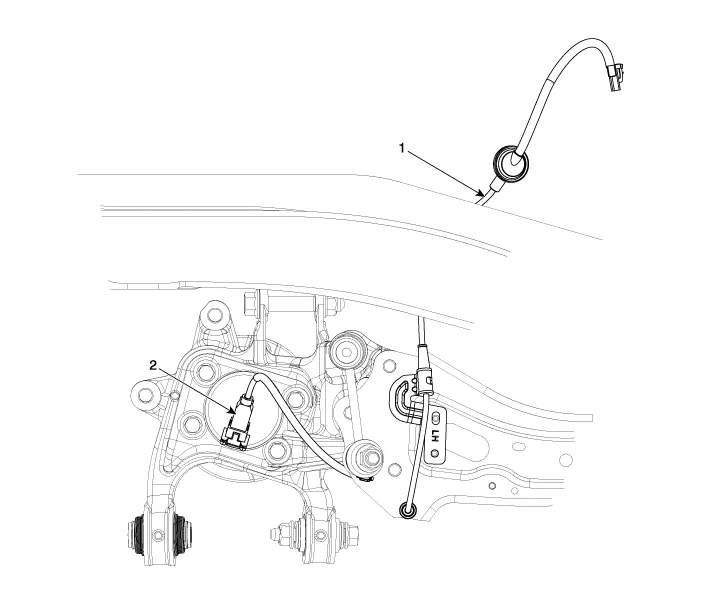

Components

1. Rear wheel speed sensor cable
2. Rear wheel speed sensor connector

    Front Wheel Speed Sensor. Repair procedures

    Removal1.Loosen the wheel nuts slightly.Raise the vehicle, and make sure it is securely supported.2.Remove the front wheel and tire (A) from the front hub...

    Rear Wheel Speed Sensor. Repair procedures

    Removal1.Loosen the wheel nuts slightly.Raise the vehicle, and make sure it is securely supported.2.Remove the front wheel and tire (A) from the rear hub...
