Hyundai Ioniq: Input shaft speed sensor 1 / Schematic diagrams

Hyundai Ioniq (AE) 2017-2025 Service Manual / DCT(Dual Clutch Transmission) System / Dual Clutch Transmission Control System / Input shaft speed sensor 1 / Schematic diagrams

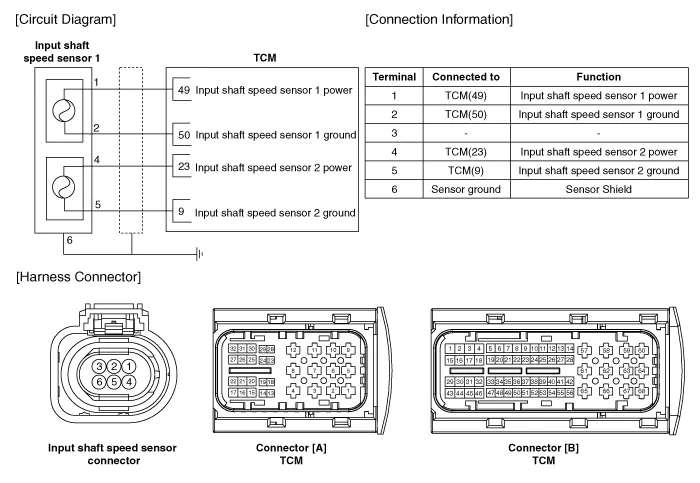

Circuit Diagram

    Description and operation

    Description• Components location : DCT (Dual Clutch Transmission)• Function The input shaft speed sensor is important in that it detects the input shaft RPM and sends this information to the Transmission Control Module (TCM)...

    Repair procedures

    Removal    • Be sure to read and follow the "General Safety Information and Caution" before doing any work related with the high voltage system...
