Hyundai Ioniq (AE) 2017-2025 Service Manual / Body (Interior and Exterior) / Crash Pad / Steering Column Shroud Panel. Components and components location

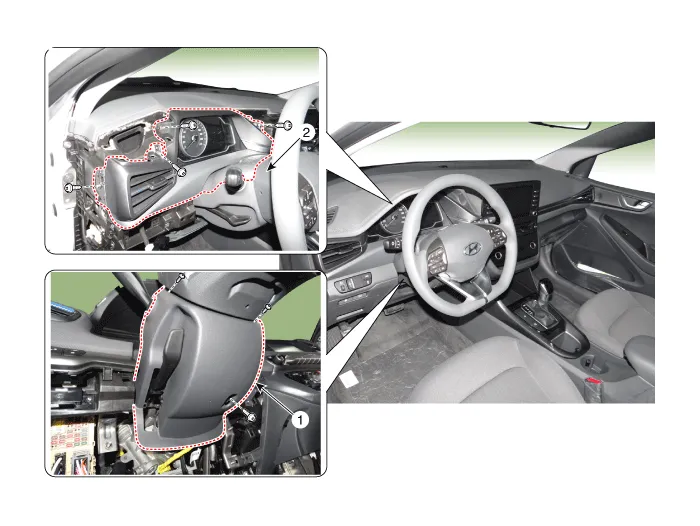

Component Location

1. Steering column shroud lower panel
2. Steering column shroud upper panel

    Crash Pad Garnish. Repair procedures

    Replacement[Crash pad center garnish]    • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components...

    Steering Column Shroud Panel. Repair procedures

    Replacement[Steering column shroud upper panel]    • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components...
