Hyundai Ioniq: Driveshaft Assembly / TJ Joint. Components and components location

Hyundai Ioniq (AE) 2017-2025 Service Manual / Driveshaft and axle / Driveshaft Assembly / TJ Joint. Components and components location

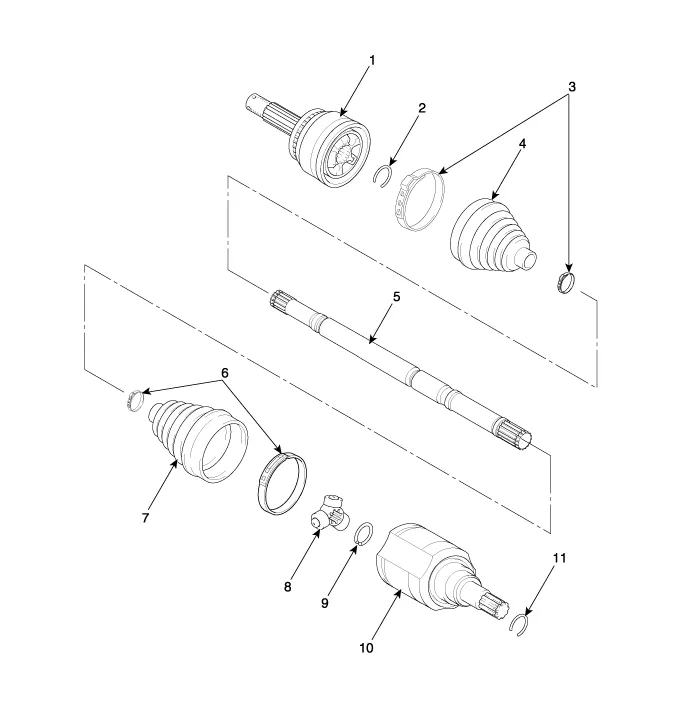

Components

1. BJ assembly
2. Circlip
3. BJ boot band
4. BJ boot
5. Shaft
6. TJ boot band
7. TJ boot
8. Spider assembly
9. Snap ring
10. TJ Housing
11. Circlip

    Front Driveshaft. Repair procedures

    Removal1.Loosen the wheel nuts slightly.Raise the vehicle, and make sure it is securely supported.2.Remove the front wheel and tire (A) from the front hub...

    TJ Joint. Repair procedures

    Disassembly    • Special grease must be applied to the driveshaft joint. Do not substitute with another type of grease...
