Hyundai Ioniq: Engine Control System / Intake Air Temperature Sensor (IATS). Schematic diagrams

Hyundai Ioniq (AE) 2017-2025 Service Manual / Engine Control/Fuel System / Engine Control System / Intake Air Temperature Sensor (IATS). Schematic diagrams

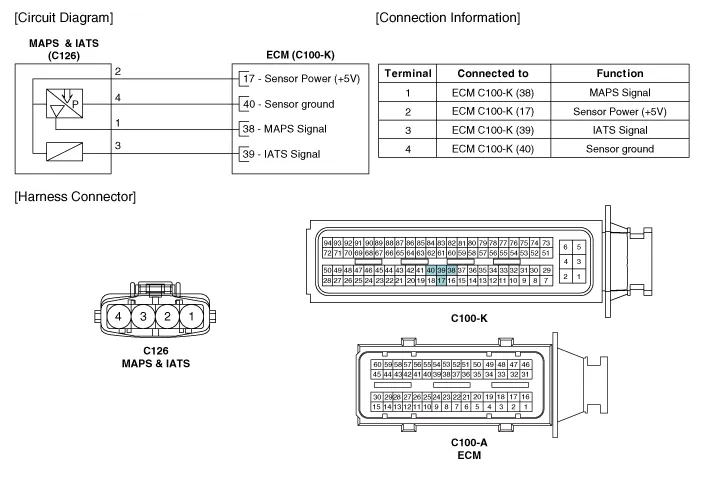

Circuit Diagram

    Intake Air Temperature Sensor (IATS). Specifications

    Specification Temperature Resistance (kΩ) °C °F -40-4040...

    Intake Air Temperature Sensor (IATS). Repair procedures

    Inspection1.Turn the ignition switch OFF.2.Disconnect the IATS connector.3.Measure resistance between the IATS terminals 3 and 4.4.Check that the resistance is within the specification...
