Components Location

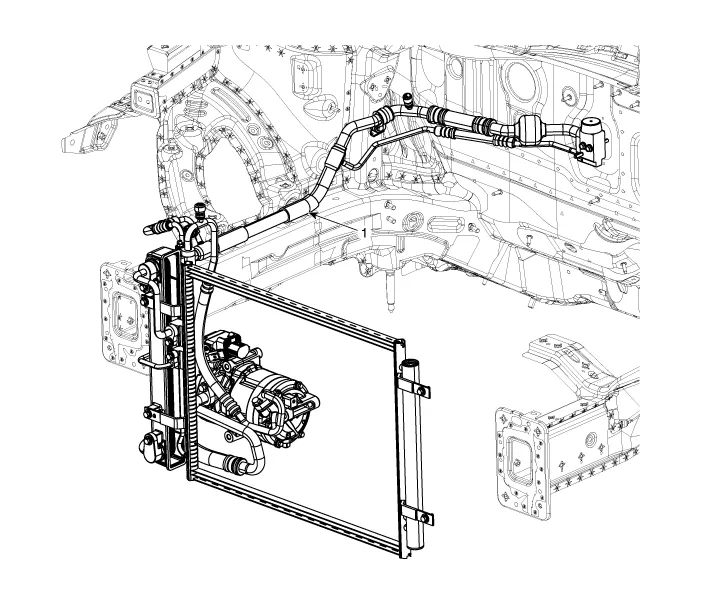

1. Refrigerant Line Assembly


    Compressor oil. Repair procedures

    Oil Specification1.The HFC-134a system requires synthetic (POE) compressor oil whereas the R-12 system requires mineral compressor oil. The two oils must never be mixed...

    Refrigerant Line. Repair procedures

    Replacement1.If the compressor is marginally operable, run the engine at idle speed, and let the air conditioning work for a few minutes, then shut the engine off...
