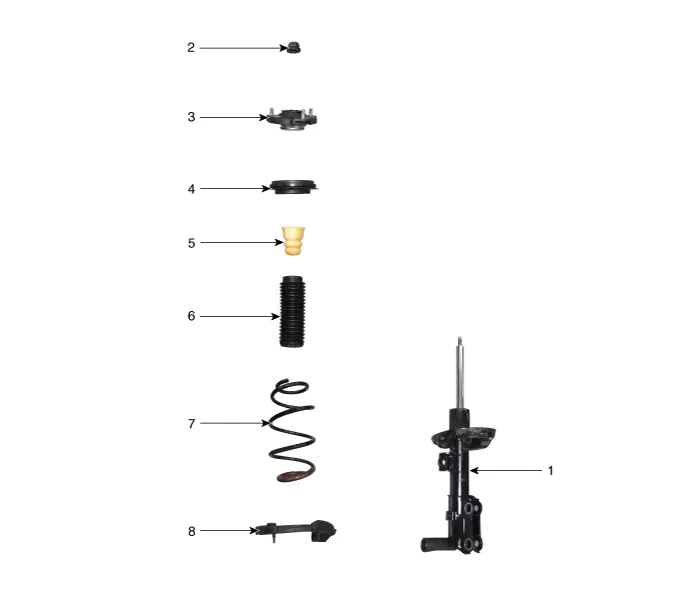

Components

1. Strut assembly
2. Lock nut
3. Insulator
4. Strut bearing & Spring upper pad
5. Bumper rubber
6. Dust cover
7. Coli spring
8. Spring lower pad

    Components and components location
