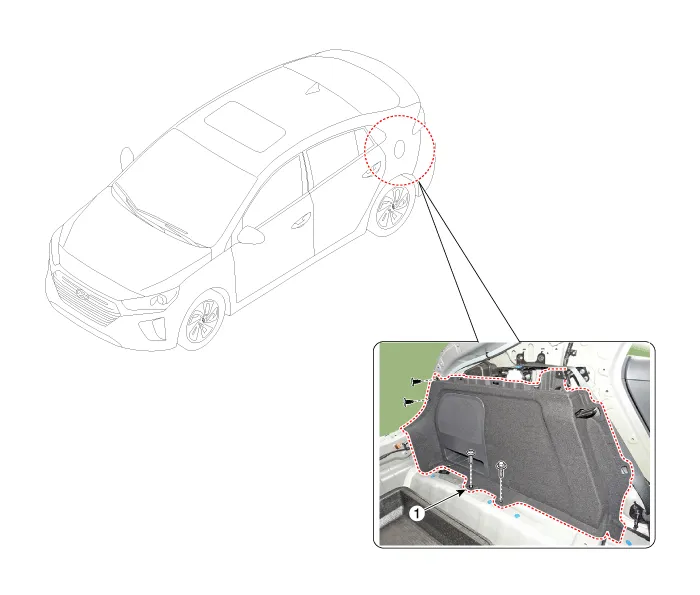

Hyundai Ioniq: Interior Trim / Luggage Side Trim. Components and components location

Rear Transverse Trim. Repair procedures

Replacement    • Put on gloves to prevent hand injuries.    • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components...

Luggage Side Trim. Repair procedures

Replacement    • Put on gloves to prevent hand injuries.    • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components...
